PR/MR workflow

Now that you have set up Burrito and planned your Terraform code automatically, you can configure a PR/MR workflow to never have to use the terraform apply command ever again.

Pre-requisites

  • You have set up Burrito on a cluster.
  • You set up TerraformRepository and TerraformLayer resources to plan your Terraform code automatically.

Setup a webhook and GitHub app for your repository

To trigger the Burrito plan and apply workflow, you need to set up a webhook from your repository to your Burrito instance. Fork the burrito-examples repository and update the TerraformRepository resource to point to your forked repository.

apiVersion: config.terraform.padok.cloud/v1alpha1
kind: TerraformRepository
metadata:
  name: my-repository
  namespace: burrito-project
spec:
  repository:
    url: https://github.com/<your-github-handle>/burrito-examples
  terraform:
    enabled: true

You will also need to setup a GitHub App to allow Burrito to comment on your PRs/MRs. Follow the instructions in the GitHub App section of the operator manual to set up the GitHub app. Make sure that you created a secret associated to your repository that include the GitHub app ID, installation ID, and private key.

Note

You can also use a personal access token instead of a GitHub app. Your GitHub account will be used to comment on the PRs/MRs.

Now let's configure the GitHub webhook. Expose the burrito-server kubernetes service to the internet using the method of your choice. (for testing purposes on a local cluster, you can use kubectl port-forward and ngrok to expose the service to the internet).

Configure a webhook in your GitHub repository to point to the exposed burrito-server service. Make sure to specify the /api/webhook path in the target url. The webhook should be triggered on push and pull_request events. Reference your webhook secret in the secret associated to your repository, in the webhookSecret key.

Your TerraformRepository resource and secret should look like this:

apiVersion: config.terraform.padok.cloud/v1alpha1
kind: TerraformRepository
metadata:
  name: my-repository
  namespace: burrito-project
spec:
  repository:
    url: https://github.com/<your-github-handle>/burrito-examples
  terraform:
    enabled: true
---
apiVersion: v1
kind: Secret
metadata:
  name: burrito-webhook-secret
  namespace: burrito-project
type: credentials.burrito.tf/repository
stringData:
  provider: github
  url: https://github.com/<your-github-handle>/burrito-examples
  webhookSecret: "your-webhook-secret"
  githubAppID: "123456"
  githubAppInstallationID: "12345678"
  githubAppPrivateKey: |
    -----BEGIN RSA PRIVATE KEY-----
    my-private-key
    -----END RSA PRIVATE KEY-----
  webhookSecret: "my-webhook-secret"

Experiment with the PR/MR workflow

Now that you have set up the webhook and GitHub app, you can experiment with the PR/MR workflow. Create a new branch in your forked repository and make some changes to the Terraform code. Push the changes to the branch and open a PR/MR against the main branch.

A new TerraformPullRequest resource should be created in your tenant namespace. You can check the status of the resource by running:

kubectl get pr -n burrito-project

Output:

NAME              ID    STATE   PROVIDER   BASE   BRANCH
my-repository-1   1     Idle    github     main   update-tf-code

A new TerraformLayer resource should also be created to plan the Terraform code. You can check the status of the resource by running:

kubectl get tfl -n burrito-project

Output:

NAME                  STATE         REPOSITORY      BRANCH           PATH        LAST RESULT
my-layer              ApplyNeeded   my-repository   main             terraform   Plan: 3 to create, 0 to update, 0 to delete
my-layer-pr-1-rxvrt   ApplyNeeded   my-repository   update-tf-code   terraform   Plan: 2 to create, 0 to update, 0 to delete

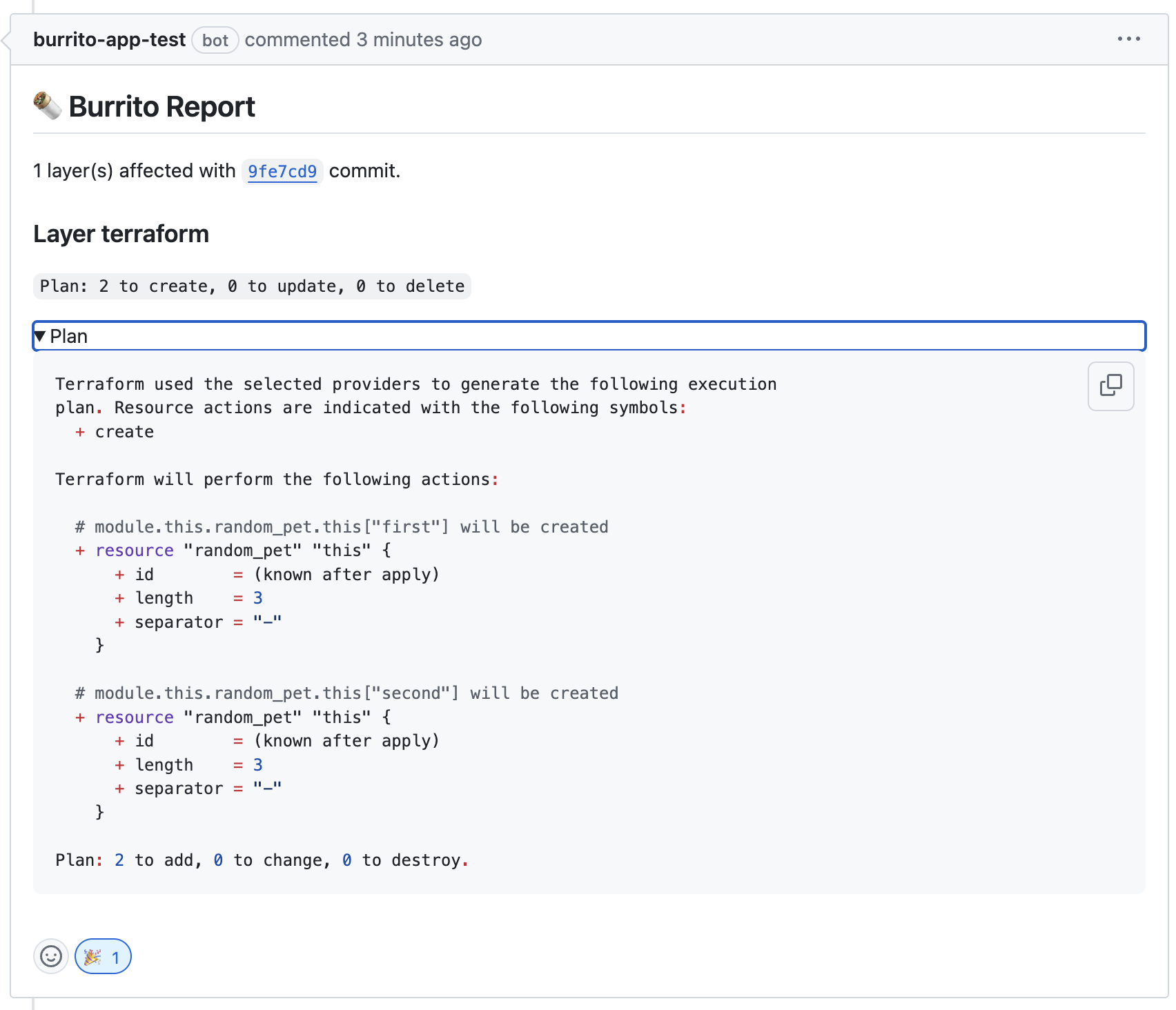

The Burrito server should have commented on the PR/MR with the plan output. You can check the comments on the PR/MR to see the plan output.

Pull request comment demo

Set the autoApply field to true in the TerraformLayer resource to automatically apply the Terraform code upon merging the PR/MR.

Conclusion

You have now set up a PR/MR workflow with Burrito to automatically plan and apply your Terraform code. You can now focus on writing Terraform code and let Burrito handle the rest.
